CNC PRECISION CYLINDRICAL GRINDING MACHINE

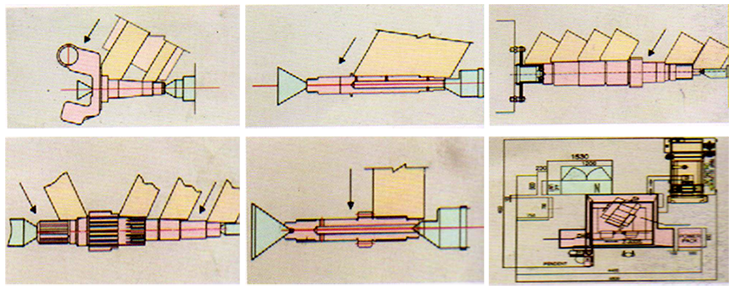

We are a renowned manufacturer of CNC Precision Cylindrical Grinder Machine. Our Machines have high goodwill in the market and are exported to a wide range of customers in the United States and all Over the world. The offered Machines meet the prevailing technical quality standards of the industry. The machines are available in various sizes, shapes, designs and specifications to suit the varied necessities of the customers.
| TECHNICAL SPECIFICATION | |||||
| CNC EXTERNAL / ANGULAR GRINDING MACHINE | |||||
| CAPACITIES | U/M | GCE260 CNC | GCE 350 CNC | Value AHG-80/100 | AHG 125/150 |
| Centre Height | mm | 130 | 175/225 | 130/175 | 130/175/250 |
| Distance Between Centres | mm | 300/600 | 600/800/1000/1200 | 300/600/800/1000 | 600/800/1000/2000 |
| STRAIGHT / ANGULAR WHEEL HEAD | |||||
| Grinding Wheel (od X Id) | mm | 600x254 | 600x254/750x304.8 | 600x254 | 750x304.8 |
| Wheel Width | mm | 80/100 | 80/100/125/150/200 | 80/100 | 125/150 |
| Spindle Motor (Induction Motor) | kw | 11/15 | 18.5/22 | 15/18.5 | 22 |
| WORK HEAD | |||||
| Spindle Nose | mt | 5/a 2-5 | 5/6 | 5/6 | 5/6 |
| Spindle Speeds (Infinitely Variable) | rpm | 50-650 | 50-650 | 50-650 | |
| Spindle Motor (ac Servo Motor) | nm | 12 | 12/22 | 12 | 12/22 |
| INFEED SYSTEM FOR WHEEL HEAD SLIDE | |||||
| Toal Stroke mm | 200 | 250 | 200 | 250 | |
| Rapid Feed Rate | mtr/min | 10 | 10 | 10 | 10 |
| Feed Servo Drive Motor (ac Servo Motor) | nm | 11/12 | 11/12 | 12 | 12/22 |
| Input Resolution | mm | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
| UNIVERSAL WHEEL HEAD* | |||||
| Od Grinding Wheel | mm | 400x50x203.2 | 400x50x203.2 | ||
| (od X Width X Id) | kw | 7.5 | 7.5 | ||
| Spindle Motor (Induction Motor) | mtr/sec. | 45 | 45 | ||
| Grinding Speed | |||||
| Internal Grinding Spindle Type | h.f/belt Driven | H.f/belt Driven | |||
| Facing Head Wheel | mm | 300 X 40 X 127 | 300 X 40 X 127 | ||
| TABLE | |||||
| Table Stroke | mm | 400/650 | 650/850 /1050/1250 | 400/650/850/1050 | 650/850/1050/2050 |
| Rapid Rate mtr/min. | 10 | 10 | 10 | 10 | |
| Feed Servodrive Motor (Acservo Motor | mm | 6.0/8 | 06/08/2012 | 8 | 8/12 |
| Input Resolution | mm | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
| TAIL STOCK | |||||
| Quill-Travel mm | 40 | 40 | 40 | 40 | |
| Quill Taper mt | 4 | 4/5 | 4 | 4/5 | |
| GENERAL | |||||
| Hyd. Power Pack Motor | kw | 0.75 | 0.75 | 0.75 | 0.75 |
| Coolant Motor Pump | kw | 1.1 | 1.5 | 1.1/1.5 | 1.1/1.5 |
| Total Weight (approx) | kg | 5000/6000 | 6500/7500 | 4500/6000 | 6500/7500 |
